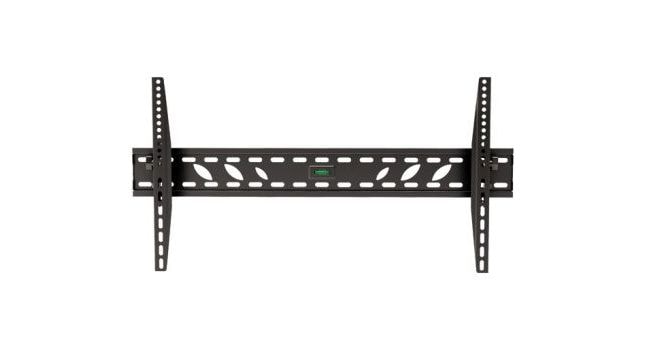

Tilting Landscape Wall Mount (Max VESA 800x400) - AS0948T

• Tilting range of -15° to +10°
• Suitable for most 37"-70” screens
• Fit mounting patterns up to 810x408mm
• Maximum VESA pattern: 800x400mm
• Mounting profile from wall: 74mm
• Maximum weight capacity: 50kg/110lbs
• Open design for easy cable and electrical access
• Integrated spirit level ensures level installation alignment
Mount Type Tilting Landscape Wall Mount
Mounting Pattern Universal
Material Steel
Material Thickness 1.5mm
Recommended Screen Size 37"-70"
Weight Capacity 50kg/110lbs
Load Tested 3 times weight capacity approved
Maximum Hole Pattern (WxH) 810x408mm
Compatible VESA Patterns 200x200, 400x200, 300x300, 400x400, 600x400, 800x400
Maximum VESA Pattern 800x400

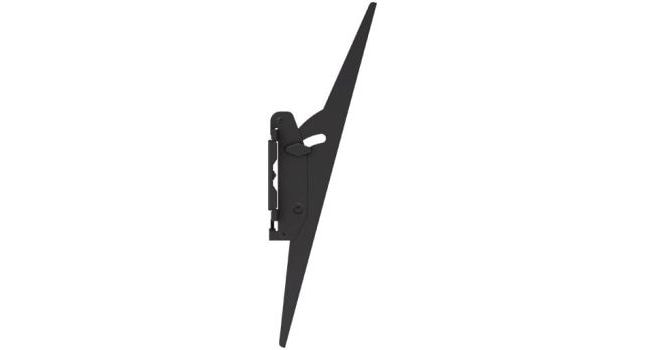

Tilt -15° to +10°
Level Adjustment
Profile 74mm
