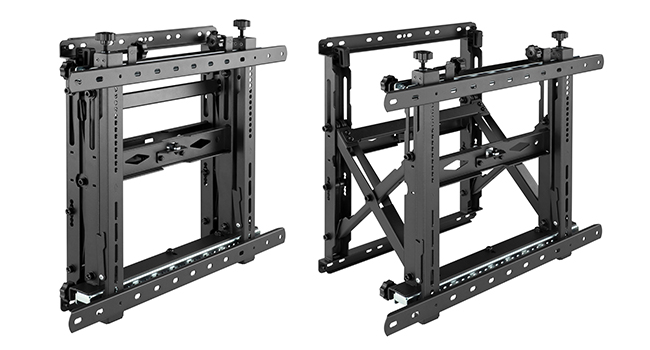

Pop-Out Video Wall Mount - AS1346T


• Designed for commercial use

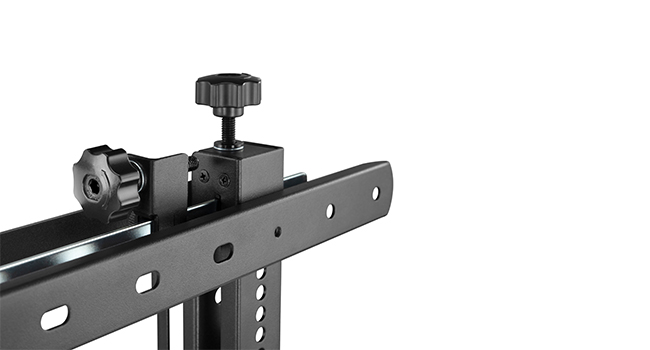

• Micro-adjustment video wall mount
• Up/down micro-adjustment: 13mm
• In/out micro-adjustment: 13.5mm
• Tilting micro-adjustment range of +2° to -3°
• Range of pop out: 135mm
• Suitable for most 42”-70” screens
• Maximum VESA pattern: 600x400mm
• Maximum hole pattern: 604x405mm
• Mounting profile from wall: 120-325mm
• Maximum weight capacity: 70kg/154lbs
• Anti-theft security feature (requires padlock)
Mount Type Pop-Out Video Wall Mount
Mounting Pattern Universal
Material Steel, Plastic
Material Finish Black Powder Coated
Recommended Screen Size 42"-70"
Weight Capacity 70kg/154lbs
Load Tested 4 times weight capacity approved
Maximum Hole Pattern (WxH) 604x405mm
Compatible VESA Patterns 200x200mm, 400x200mm, 300x300mm, 300x200mm, 400x300mm, 400x400mm, 600x400mm
Tilt -3° to +2°
Swivel
Level Adjustment 13.5mm/13mm
Rotation
Anti-theft Yes
