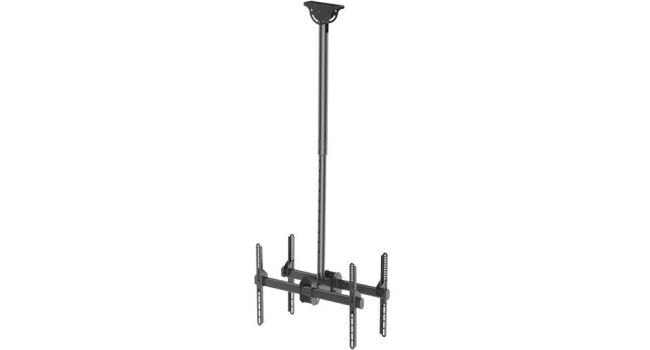

Back-to-Back Telescopic Ceiling Mount (32"-55") - AS94601LD

10 year warranty stamp
Order Now
• Tilting range of -20° to +5°
• Full swivel range of 360°
• Level adjustment of -3° to +3°
• Suitable for most 32"-55” screens
• Maximum VESA pattern: 600x400mm
• Maximum weight capacity: 45kg/99lbs (each screen)
• Total height range: 1278-1778mm
• Distance between two mounts (at 0°):240mm
Mount Type Back-to-Back Tilting Telescopic Ceiling Mount
Mounting Pattern Universal
Material Steel
Material Finish Powder Coated
Recommended Screen Size 32"-55"
Weight Capacity 45kg/99lbs (each screen)
Load Tested 3 times weight capacity approved
Maximum Hole Pattern 605x405mm
Maximum VESA Pattern 600x400
Compatible VESA Patterns 200x200, 400x200, 300x300, 400x400, 600x400
Tilt -20° to +5°
Swivel 360°
Level Adjustment -3° to +3°
Rotation 0°
Profile 1060-1560mm
Column Rotation -90°, -60° to +60°. +90°
