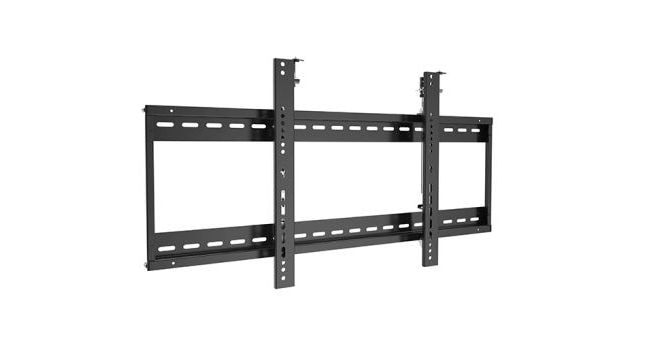

Video Wall Mount with Micro-Adjustment - AS0346VF


• Micro-adjustment at 6 points in all directions: up-down, left-right and front-back.
• Lateral shift brackets enable fast alignment
• Up/down micro-adjustment: 28mm
• Tilting micro-adjustment range of +3° to -5°
• Suitable for most 46”-70” screens
• Maximum VESA pattern: 600x400mm
• Maximum hole pattern: 600x450mm
• Mounting profile from wall: 76mm
• Maximum weight capacity: 70kg/154lbs
• Anti-theft security feature (requires padlock)
Mount Type Landscape Video Wall Mount with Micro Adjustment
Mounting Pattern Universal
Material Steel
Recommended Screen Size 46"-70"
Weight Capacity 70kg/154lbs
Load Tested 4 times weight capacity approved
Maximum Hole Pattern (WxH) 600x400mm
Compatible VESA Patterns 200x200, 400x200, 300x300, 400x400, 600x400
Tilt -3° to +5°
Swivel
Level Adjustment -3° to +3°
Rotation
Anti-theft Yes
